DFS-4232-RM



    DFS-4232-RM

    Multi-NVR Failover Server

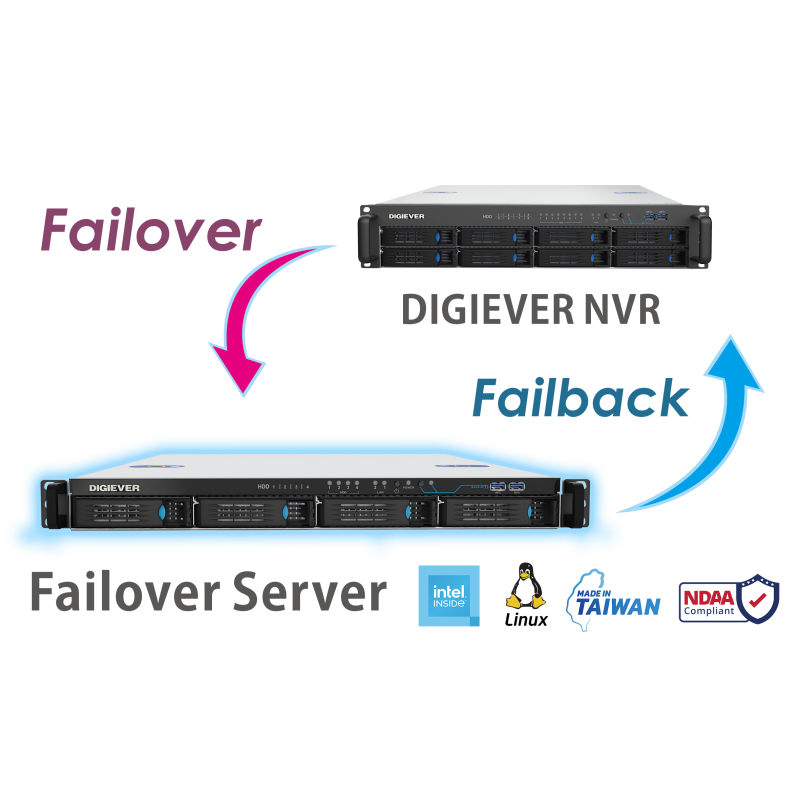

    DFS-4232-RM is a true PC-less and 4-bay standalone NVR failover server that prebuilds 32-channels licenses for emergent video recording and monitoring. With the maximum of 72TB storage capacity, Failover Server can ensure 24/7/365 video recording. Once Failover Server detects original DIGIEVER NVR restores it functionality, Failover Server will failback to DIGIEVER NVR and continue its NVR monitoring service.


4 BAY 32 CH
____________________ ____________________
Hard Disk Drive Channels





Key Features

  • Monitor 4 NVRs by default (up to 16 NVRs by licenses)
  • Pre-built 32-channel Licenses

    • CPU
  • Intel High Performance CPU
    		•
    Memory
  • 4 GB Flash (DOM)
  • 4 GB DDR 4 memory
    		•
    Storage Capacity per HDD
  • Up to 18TB
    		•
    HDD Tray
  • 4 (Hot Swappable)
    		•
    Maximum Capacity
  • Up to 72TB
    		•
    LAN Port
  • 2 x 2.5 Gigabit RJ-45 Ethernet port
    		•
    LED Indicators
  • HDD1, HDD2, HDD3, HDD4, LAN1, LAN2, One-touch Backup button
    		•
    USB Connector
  • Front: 2 x USB 3.2 Gen 1x1 for high speed video backup
  • Back: 4 x USB 3.2 Gen1 1x1 for supporting external pen drive, USB mouse/keyboard, USB UPS, etc.
    		•
    Buttons
  • Power, USB backup
    		•
    GPIO
  • 4-in, 4-out
    		•
    Video Output Connector
  • HDMI 2.0a x 2 (for local display)
    		•
    Alarm Buzzer
  • System warning
    		•
    Form Factor
  • Rack mount
    		•
    Operating Temperature
  • 0~40℃
    		•
    Operating Humidity
  • 5~95% R.H.
    		•
    Power Supply
  • Input: 100-240V AC, 50/ 60Hz; Output: 250W
    		•
    Power Consumption
  • Operation: 22~50 W (with 4 x 500GB HDD installed and in RAID 5 building process)
    		•
    Fan
  • 3 x cooling fan
    		•
    H/ W Dimensions
  • 45.4 (H) x 430 (W) x 548 (D) mm
  • 1.78 (H) x 16.9 (W) x 21.5 (D) inch
    		•
    Color Box Dimensions
  • 180 (H) x 737 (W) x 587 (D) mm
  • 7.8 (H) x 29 (W) x 23.1 (D) inch
    		•
    Carton Dimensions
  • 215 (H) x 757 (W) x 607 (D) mm
  • 8.4 (H) x 29.8 (W) x 23.9 (D) inch
    		•
    Color Box Shipping Weight
  • Net Weight (kg/PC): 6.26
  • Gross Weight (kg/PC): 8.88
  • Gross Weight (kg/CTN): 10.88
    		•
    Failover Ability
    Pre-built Channel License
  • 32
    		•
    Smart Monitoring
  • Monitor 4 NVRs by default (Optional up to 16 NVRs by license)
    		•
    Recording Resolution
  • Up to 10 Megapixel
    		•
    NVR Failover
  • Yes, within one minute
    		•
    Failover Recording Mode
  • NVR network disconnection
  • NVR is connected but not recording
  • NVR fails to recycle video files
  • NVR's HDD failed
    		•
    NVR Failback
  • Yes, within one minute
    		•
    Advanced Failover Detection
  • Yes, to set up when to take over
    		•
    Local Liveview & Playback
  • Yes
    		•
    Remote Liveview & Playback
  • Yes
    		•
    Mobile Device Monitoring
  • Yes, iOS and Android device
    		•
    Video Export & Backup
  • Yes, to USB storage device/ NAS/ FTP server
    		•
    Reliability
    RAID Level
  • RAID 0, 1, 5, 6, 10
    		•
    S.M.A.R.T HDD Health Monitoring
  • Yes
    		•
    Security Management
    Log System
  • Hardware log, system log, event log, current user log, historical user log and file access log
    		•
    Access Number Control
  • The access users numbers is allowed to be limited
    		•
    Operating System
  • Linux-embedded
    		•
    Network Service
    Protocol Support
  • HTTP/ HTTPS, TCP/IP, DHCP, Static IP, DNS, DDNS, UPnP, FTP, NTP, SMTP
    		•
    File Sharing Service
  • Windows networking, FTP service
    		•
    Suggested Switch Requirement
    Switch
  • Gigabit switch is highly recommended
    		•
    *Note: Please contact sales to know more integrated information.
