DS-16564-RM UHD



    DS-16564-RM UHD

    All-in-one Features of DIGIEVER NVR (Network Video Recorder)

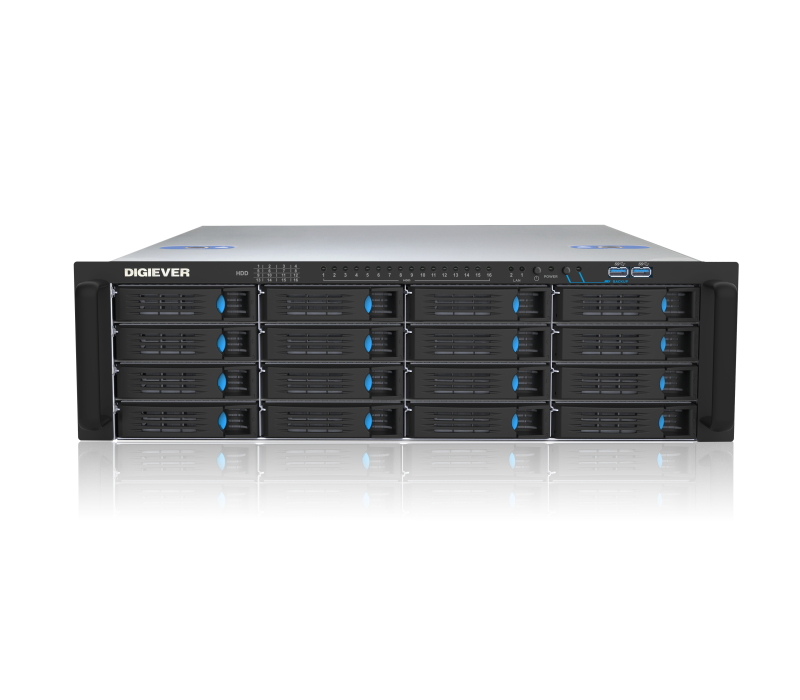

    DS-16564-RM UHD, a true PC-less and 16-bay standalone NVR, provides 64 channels real-time local display, remote web monitoring and megapixel recording with high performance 650Mbps network throughput. With excellent hardware decode performance, DS-16564-RM UHD can perform 4K (8MP): 200 FPS, Full HD: 500 FPS, HD: 960 FPS, CIF: 1600 FPS resolution.


16 BAY 64 CH 650 Mbps
____________________ ____________________ ____________________
Hard Disk Drive Channels Max. Recording Performance







DS-16564-RM UHD is a 16-bay Linux-embedded standalone NVR, powered by Intel high speed CPU and performs excellent network surveillance of multiple IP cameras up to 64 channels of single server and up to 256 channels of multiple servers. DIGIEVER NVR supports hardware decode local display of 4K Ultra HD (8MP) quality, remote browser monitoring, multi-layer dynamic E-Map, multi-megapixel recording and smart search playback. The monitoring demands can be satisfied anywhere and anytime by local display monitoring, remote browser monitoring, iOS and Android mobile monitoring.

With intuitive Quick Configuration, users can finish trouble-free installation in only five steps on local display or remote browsers. The Linux-embedded NVR supports event/schedule recording, automatic recovery, threshold of recorded videos and video clip. Through event and action management, DIGIEVER NVR lets user set various events and actions for instant alert. For emergent need of video duplication, DIGIEVER NVR is equipped with diverse backup methods so that users can freely backup recorded videos to USB storage devices, NAS etc. In terms of security control, user privilege management and log system offer user detailed information for security control. All these essential features can be configured quickly on DIGIEVER NVR local display and remote browser interface.



CPU
  • Intel Quad Core High Speed CPU
    		•
    Memory
  • 4 GB Flash (DOM)
  • 8 GB DDR4 memory
    		•
    Storage Capacity per HDD
  • Up to 18TB
    		•
    HDD Tray
  • 16
    		•
    Maximum Capacity
  • 288TB
    		•
    LAN Port
  • 2 x 2.5 Gigabit RJ-45 Ethernet port
    		•
    LED Indicators
  • HDD1, HDD2, HDD3, HDD4, HDD5, HDD6, HDD7, HDD8, HDD9, HDD10, HDD11, HDD12, HDD13, HDD14, HDD15, HDD16, LAN1, LAN2
    		•
    USB Connector
  • Front: 2 x USB 3.2 Gen 1x1 for high speed video backup
  • Back: 4 x USB 3.2 Gen1 1x1 for supporting external pen drive, USB mouse/keyboard, USB UPS, USB speakers .etc.
    		•
    Buttons
  • Power, USB backup
    		•
    GPIO
  • 4-in, 4-out
    		•
    Output Connector
  • HDMI 2.0a x 2 (for local display)
    		•
    Alarm Buzzer
  • System warning
    		•
    Form Factor
  • Rack mount
    		•
    Operation Environment
  • Temperature 0~40˚C
  • Humidity 5~95% R.H.
    		•
    Power Supply
  • Input: 100-240V AC, 50/60Hz
  • Output: 600W
  • Optional purchase: Redundant Power Supply
    		•
    Power Consumption
  • Operation: 152~178 W
    • (with 16 x 500GB HDD installed and in RAID 5 building process)
    Fan
  • 4 x cooling fan (8cm)
    		•
    H/ W Dimensions
  • 133.4 (H) x 430 (W) x 554 (D) mm
  • 5.25 (H) x 16.9 (W) x 21.8 (D) inch
    		•
    Color Box Dimensions
  • 259 (H) x 742 (W) x 582 (D) mm
  • 10 (H) x 29.2 (W) x 22.9 (D) inch
    		•
    Carton Dimensions
  • 290 (H) x 764 (W) x 602 (D) mm
  • 11.4 (H) x 30 (W) x 23.7 (D) inch
    		•
    Color Box Shipping Weight
  • Net Weight (kg/PC): 13.76
  • Gross Weight (kg/PC): 17.35
  • Gross Weight (kg/CTN): 17.35
    		•
    Local Display
    Display Mode
  • 1/ 3/ 4/ 5/ 8/ 9/ 10/ 12/ 16/ 20/ 25/ 30/ 36/ 42/ 49/ 56/ 64 & 5+1/12+1-channel & sequential and full screen display modes
    		•
    Max Channel Supported on Local Display
  • Up to 64 channel/ page
    		•
    H/W Decode Max Resolution per Channel
  • Resolution up to 8MP (4K UHD)
    		•
    Local Display Resolution
  • HDMI 2.0a display port: 3840 x 2160 (4K UHD), 1920 x 1080 (Full HD), 1024 x 768 (XGA)
  • HDMI 2.0a display port: 3840 x 2160 (4K UHD), 1920 x 1080 (Full HD), 1024 x 768 (XGA)
    • ** Note: Dual 4K display supports in mirror display mode.
    H/W Decode Max. FPS in Single Page
  • In 3840x2160 (4K) display: 4K (8MP): 200 FPS, Full HD: 500 FPS, HD: 960 FPS, CIF: 1600 FPS
  • In 1920x1080 (Full HD) display: 4K (8MP): 240 FPS, Full HD: 700 FPS, HD: 1080 FPS, CIF: 1920 FPS
    		•
    Two-screen Display
  • Mirror Display: Monitor the same cameras at two sites
  • Dual Display: Monitor more cameras on two monitors
  • Target Display: Focus on key areas during video playback
  • eMap Display: Monitor cameras with a detailed map information
    		•
    Liveview Event Notice
  • Yes, event log icon will start blinking when camera disconnection or other configured event happens.
    		•
    One-click to Stop Buzzer in Event Log
  • Yes
    		•
    Auto-mute Mode for Idle Cursor
  • Yes
    		•
    On-screen Display
  • Yes, able to define information, size, position and color
    		•
    User-defined Pointer
  • Yes, able to define the cursor size, color, and speed
    		•
    Local Playback
  • 1/ 4/ 5/ 9/ 16-channel
    		•
    Playback Control
  • Play, Pause, Fast forward, Rewind, Slow Motion, Backward/Forward
    		•
    One Camera All Frames Playback
  • Yes
    		•
    Advanced Settings for Backward/Forward Button
  • Yes. (1/ 5/ 10/ 30/ 60 seconds, 10 minutes & 1 hour)
    		•
    Recorded Files Export
  • Yes
    		•
    AI Search
  • 4 key attributes (People, Vehicle, Face and Event), more than 50 criteria, pre-event time setup (3~100 sec) AI-Event integration via AI Box, Support real-time event notification
    		•
    Liveview Instant Playback
  • Yes, adjustable window design
    		•
    2-Way Audio Support
  • Yes
    		•
    Audio out for monitor option
  • Yes, screen 1 or screen 2
    		•
    Local Monitoring Control
  • Set Preset Points for ONVIF PTZ Cameras, PTZ control, PTZ auto cruising, digital zoom, optical zoom, focus control, full screen display, video sanpshot and preset position
    		•
    Camera Dewarp
  • Yes
    		•
    Moving Speed for ONVIF PTZ camera
  • Yes. (Very fast, Fast, Normal, Slow, Very slow)
    		•
    Audio pattern for 2-Way Audio
  • Yes, 1~10 sound patterns (Supported camera brand: TOA)
    		•
    Auto Tracking
  • Yes. (Supported camera brands: Hanwha, AXIS)
    		•
    Local Configuration
  • Yes, PC-less design
    		•
    Remote Monitoring (Windows)
    Surveillance Software Application
  • Yes, able to access NVR via entering the IP address on web browser and the shortcut on desktop.
    		•
    Multi Web Browsers Support
  • Chrome, Fireforx, Opera, MicroSoft Edge for configuration
    		•
    Display Mode
  • 1/ 2/ 3/ 4/ 5/ 8/ 9/ 10/ 12/ 16/ 20/ 25/ 30/ 36/ 42/ 49/ 56/ 64 & 5+1/12+1-channel & sequential and full screen display modes
    		•
    Focus Sequential Display
  • Supports 5+1 and 12+1-channel display made, able to define sequential intervals for focus screen and secondary screen.
    		•
    Auto-mute Mode for Idle Cursor
  • Yes
    		•
    On-screen Display
  • Yes, able to define information, size, position and color
    		•
    POS On-screen Display
  • Yes, able to define font size, color and display time
    		•
    Mini-CMS Server Monitoring
  • Up to 512 channels from mulitple NVR servers
    		•
    E-map
  • Yes, Multi-layer dynamic E-Map, pop-out event window, double-click to pop-out large video window, customized camera icons on map
    		•
    Instant Playback on Liveview and E-Map
  • Yes
    		•
    Smart PTZ Patrol Schedule
  • Yes
    		•
    Control
  • Set Preset Points for ONVIF PTZ Cameras, PTZ control, PTZ auto cruising, digital zoom, optical zoom, focus control, full screen display, video sanpshot and preset position
    		•
    Region of Interest (ROI)
  • Monitor 5 or 7 regional images from a high-resolution camera
    		•
    2-Way Audio Support
  • Yes, supported by external USB sound adapter
    		•
    Built-in Relay Server
  • Video will be provided by NVR's built-in relay server to satisfy multiple clients simultaneous monitoring
    		•
    YouTube/Facebook Live
  • Yes, share up to 4-channel to YouTube/Facebook in default (Option up to 16-channel)
    		•
    Liveview Instant Playback
  • Yes, adjustable window design
    		•
    Moving Speed for ONVIF PTZ camera
  • Yes. (Very fast, Fast, Normal, Slow, Very slow)
    		•
    Audio pattern for 2-Way Audio
  • Yes, 1~10 sound patterns (Supported camera brand: TOA)
    		•
    Auto Tracking
  • Yes. (Supported camera brands: Hanwha, AXIS)
    		•
    Camera Dewarp
  • Yes
    		•
    Remote Playback (Windows)
    Multi-channel Playback
  • 1/ 4/ 5/ 9/ 16-channel display
    		•
    Multi-NVR Playback
  • Up to 16 channels from multiple NVR servers
    		•
    One Camera All Frames Playback
  • Yes
    		•
    Search Mode
  • Search by smart search, date, time, channel, and various recorded file types including event reccording
    		•
    Camera Dewarp
  • Yes
    		•
    On-screen Display
  • Yes, able to define information, size, position and color
    		•
    POS On-screen Display
  • Yes, able to define font size, color and display time
    		•
    AI Search
  • 4 key attributes (People, Vehicle, Face and Event), more than 50 criteria, pre-event time setup (3~100 sec) AI-Event integration via AI Box, Support real-time event notification
    		•
    Smart Search
  • Motion detection, missing object, foreign object, out of focus and camera occlusion
    		•
    Data Search
  • Quickly find key event data and metadata to export the list (csv file) and save snapshots/video clips
    		•
    Region of Interest (ROI)
  • Monitor 5 or 7 regional images from a high-resolution camera
    		•
    Control
  • Play, Pause, Fast forward, Rewind, Slow Motion, Frame By Frame
    		•
    Advanced Settings for Backward/Forward Button
  • Yes. (1/ 5/ 10/ 30/ 60 seconds, 10 minutes & 1 hour)
    		•
    Time-divided Search
  • Divide a video into many videos and playback directly. The videos will show the first frame of that period of time on each channel
  • Add timestamp markers for multi-camera tracing (up to 12)
    		•
    Video Snapshot
  • Yes
    		•
    Video Export
  • Yes, including to add test watermark, to define video format, to combine 5-minute videos into a AVI file.
    		•
    Instant Export
  • Export multi-channel videos during video playback
    		•
    Quick Video Player for Exported Video
  • Yes, video exported from NVR can be played on NVR and remote computer's NVRPlayer
    		•
    Recording
    Maximum Number of Channels
  • Up to 64
    		•
    Recording Mode
  • Recording by Event & Schedule/Always/Event/Audio Recording while Event Triggered/ Manual
    		•
    Event Smart Recording
  • Record event video in high video quality when an event is triggered; the normal video will be recorded in lower video quality.
    		•
    Storage Capacity Management
  • Automatic Recycle by Percertage / Keep Video for Certain Days
    		•
    Camera Group Recording
  • Yes, assign video keeping days for each camera by categorizing cameras in groups (storage days)
    		•
    Camera Edge Recording
  • Yes, for specific camera brands
    		•
    Time-lapse Recording
  • Two capture plans: recording duration / capture interval
    		•
    Schedule Snapshot
  • Yes, support periodical snapshots of selected cameras
    		•
    Multi-stream
  • Yes, support dual-stream to optimize recording and monitoring experience
    		•
    Recording File Format
  • AVI format
    		•
    Secured File Format
  • Unique format for NVRPlayer playback
  • General format for common media player playback (like Windows Media Player)
    		•
    Video Format
  • Compatible with multiple formats based on camera model capabilities
    		•
    Maximum Recording Performance
  • 650Mbps (Varied in different environment)
    		•
    Recording Enhancement
  • Real-Time Digital Watermarking
    		•
    Advanced Event & Action Management
    Event
  • Up to 32 Event Configurations:
    • Camera Events: Camera connection lost, camera connection lost delay, camera motion detection, camera audio detection, camera digital input, cross line detection, tampering detection, people counting threshold alarm, temperature detection, loitering detection, foreign object detection, missing object detection, advanced motion detection, human detection, low FPS
    • NVR Events: NVR connection lost, UPS low power warning, storage threshold warning, abnormal shutdown, NTP time sync failed, external event (HTTP-in), built-in digital input
    • Storage Events: RAID degraded, RAID failed, RAID rebuilding
    • NVR Hardware Events: CPU temperature warning, CPU fan warning, system fan warning, HDD error warning, HDD fail warningm, redundant power supply failure
    		•
    Action
  • Up to 19 Actions for Event:
    • PC Alert sound, Event log history, Video pop-out window, Highlight video window, Event recording, E-Mail notification, Video clip via e-Mail, Snapshot via e-Mail, Camera digital output, Go to press point, Built-in digital output, User defined action (HTTP-out), NVR buzzer alarm, SMS, External IO Box, Backup to external FTP server, Stack light, Network horn speaker, SNMP trap
    		•
    Chain Event
  • Yes, NVR triggers several actions when multiple events happen in user-defined time
    		•
    Web Surveillance
    Dedicated Login Options
  • Yes. by activation
    		•
    Display Mode
  • 1/ 4/ 9/ 12/ 16/ 25/ 36/ 49/ 64-CH, Full screen, sequential for Liveview 1/4/9/12/16-CH for Playback
    		•
    Video Format
  • H.264
    		•
    Video Stream
  • Support dual stream
    		•
    Audio Format
  • AAC/ G.711 (PCMU/ PCMA)
    		•
    OSD
  • Yes
    		•
    Liveview Feature
  • Event log, stop buzzer, recording status
    		•
    Playback Feature
  • Calendar, Start date & time and end date & time setup, Video type (normal, event)
    		•
    Web Browser
  • Window 10/11:
    • Chrome 109.0.5414 or later version
    • Edge: 109.0.1518.49 or later version
    • Firefox: 115.21.0 or later version
    • Opera: 95.0.4635.84 or later version
    • Safari: 16.4.1 or later version
  • MacOS Monterey 12.6.5
    • Safari: 16.4.1 or later version
    		•
    Liveview Control
  • Manual recording, audio/mute, snapshot, digital zoom in/out, set preset points for ONVIF PTZ cameras, PTZ control, PTZ patrol schedule, PTZ auto cruising, Go to preset point
    		•
    Playback Control
  • Play/pause, stop, slow motion, fast-forward, rewind, export, snapshot, mute, seek bar, speed Indicator, all frame playback at 1x, 2x speed
    		•
    Mobile Device
    iOS and Android Support
  • Yes
    		•
    Display Mode
  • 1/ 4/ 9/ 12/ 16-channel and sequential display mode
    		•
    Control in Monitoring
  • PTZ control, Digital Contorl, Snapshot, Camera Dewarp, Audio, Two-way Audio
    		•
    Search Mode
  • By date & time, channels, various recorded video types
    		•
    Control in Playback
  • Play, Pause, Fast forward, Rewind, Slow Motion, Frame by Frame
    		•
    Remote Control
  • Yes, the mobile device can control the live view of NVR directly
    		•
    Event Notification
  • Yes, Event push notification and detail event log from Multiple NVRs
    		•
    Built-in NVR Search
  • Yes, NVRs in LAN can be searched easily
    		•
    Security Management
    NVR Failover
  • Yes. Monitor up to 4 NVRs in default (Option up to 16 NVRs)
    		•
    Access Control Device Management
  • Yes, manage up to 4 access control devices in default (Option up to 16 devices)*
    		•
    External Modbus Analog I/O-Digital I/O Box
  • Yes, connect up to 4 Modbus Analog I/O-Digital I/O boxes in default (Option up to 16 boxes)*
    		•
    IP Video Door Station Management
  • Yes, record videos in normal and event (call-up) situation
    		•
    Integration of DIGIEVER PoE Switch
  • Yes
    		•
    Dashboard
  • Yes, Export 2 reports. Dashboard snapsot in PDF & system log
    		•
    User Privilege Management
  • User can be assigned for different levels of privilege
    		•
    Advanced User Management
  • Random password sent by Email, Account expiration by assigning a specific date, Audio authorization, Rename “Admin” and password, Delete account by user, Strong password policy
    		•
    Advanced Five Privileges for Power User
  • Disk Management, Network Setup, Log System, System Upgrade, and Reboot & Shutdown
    		•
    Log System
  • Hardware log, NVR log, event log, current user log, historical user log and file access log
    		•
    IP Access Control
  • Specify IP address or network segment for the white and black list
    		•
    Access Number Control
  • The access users numbers is allowed to be limited
    		•
    Auto Logout
  • Auto logout idle time limit from configuration page
    		•
    Login Security Lock
  • Yes. Login page locked when 5 consecutive login errors
    		•
    Microsoft Active Directory(AD) Access
  • Yes, login with the username and password of AD account.
    		•
    Batch Camera Import
  • Yes, (.csv file format)
    		•
    Two LAN Port Applications
  • Yes, including share IP, seperated IP and Link Aggregation
    		•
    Operating System
  • Linux-embedded system
    		•
    Video Backup
    USB Backup
  • Insert external USB device into NVR and press USB BACKUP button in 3 seconds to duplicate the video file instantly
    		•
    USB Type CD-ROM Backup
  • Yes, support encryption for exported files
    		•
    NVR Backup Server
  • Yes, preserve crucial camera videos from multiple DIGIEVER NVRs.
    		•
    NVR Edge Backup
  • Yes, for simultaneous recording & mutual backup solution
    		•
    Remote Backup
  • Yes, support remote backup to NAS/FTP server (schedule & manual backup)
    		•
    Local Backup
  • Yes, support local backup to USB storage devices (schedule & manual backup)
    		•
    Backup Resume from Breakpoints
  • Yes, schedule mode
    		•
    Backup Delay Warning
  • Yes, schedule mode (1~24 hours, 6 hours by default)
    		•
    Network Service
    Protocol Support
  • HTTP/HTTPS, TCP/IP, DHCP, Static IP, DNS, DDNS, UPnP, FTP, NTP, SMTP and IPv6 (for NVR)
    		•
    File Sharing Service
  • Windows networking, FTP service (Active/Passive mode configuration), FTP folder settings
    		•
    Reliability
    Disk Management
  • Linear (JBOD), RAID 0/ 1/ 5/ 6/ 10 disk configurations
    		•
    Multi-RAID Configuration
  • Yes, up to 16 volumes
    		•
    Hot Swap Design
  • Yes
    		•
    Global Hotspare
  • Yes
    		•
    Auto HDD Alarm on Liveview
  • Yes, when HDD Error and HDD Failed happens
    		•
    S.M.A.R.T HDD Health Monitoring
  • Yes, with HDD power-on hours notice. Report export.
    		•
    Smart System Fan Speed Control
  • Yes, system fan automatically adjusts to proper RPM (revolutions per minute) based on HDD temperatures
    		•
    Power Resume after Power Shortage
  • Yes
    		•
    Uninterruptible Power Supply (UPS) Support
  • Yes, with low battery warning as well as smart shutdown and startup design
    		•
    Suggested PC Requirements for Remote Monitoring
    Operating System
  • Microsoft® Windows® 10/11
    • CPU
  • Intel® i7 CPU or above
    		•
    Memory
  • 16G or above
    		•
    Web Browser for Login
  • Microsoft® Edge 44.18362.387.0 or above, Chrome 56.0.29 or above, Firefox 51.0.1 or above, Opera 43.0.2 or above, Safari 16.4.1 or above
    		•
    NVR-Client Shortcut for Login
  • Yes, support save login information and auto login on startup
    		•
    Suggested Switch Requirement
    Switch
  • Gigabit switch is highly recommended.
    		•
    *Note: Please contact sales to know more integrated information.
    Datasheets Download
