| CPU |
Intel High Speed CPU |
| Memory |
1 GB Flash (DOM)
2 GB DDRIII memory |
| Storage Capacity per HDD |
Up to 18TB |
| HDD Tray |
16 |
| Maximum Capacity |
Up to 288TB |
| LAN Port |
2 x 2.5 Gigabit RJ-45 Ethernet port |
| LED Indicators |
HDD1, HDD2, HDD3, HDD4, HDD5, HDD6, HDD7, HDD8, HDD9, HDD10, HDD11, HDD12, HDD13, HDD14, HDD15, HDD16, LAN1, LAN2 |
| USB Connector |
Front: 2 x USB 3.2 Gen 1x1
Back: 4 x USB 3.2 Gen 1x1
|
| Buttons |
Power, USB backup (reserve) |
| Video Output Connector |
HDMI 2.0a x 2 (for local configuration) |

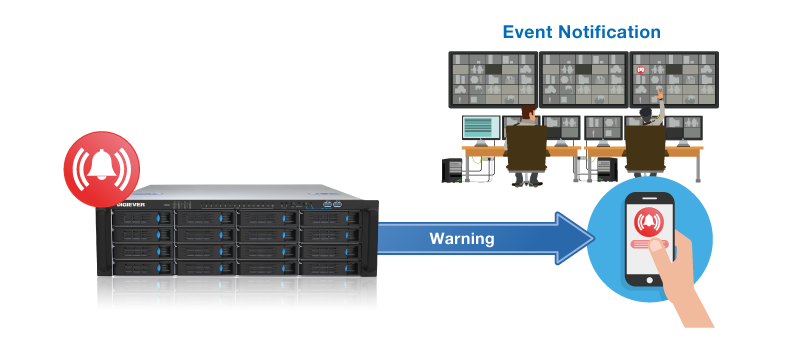

| Alarm Buzzer |
System warning |
| Form Factor |
Rack mount |
| Operation Environment |
Temperature 0~40˚C
Humidity 9~95% R.H. |
| Power Supply |
Input: 100-240V AC, 50/ 60Hz
Output: 600W |
| Power Consumption |

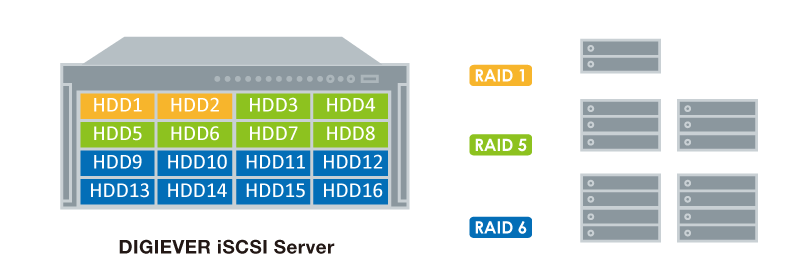

178 W (with 16 x 500GB HDD installed in RAID 5 building process) |
| Fan |
3 x cooling fan (8cm) |
| H/ W Dimensions |
133.4 (H) x 430 (W) x 554 (D) mm
5.25 (H) x 16.9 (W) x 21.8 (D) inch |
| Color Box Dimensions |
279(H) x 592(W) x 757(D) mm
10.98(H) x 23.31(W) x 29.80(D) inch |
| Carton Dimensions |
279(H) x 592(W) x 757(D) mm
10.98(H) x 23.31(W) x 29.80(D) inch |
| Color Box Shipping Weight |
Net Weight (kg/PC): 14.30
Gross Weight (kg/PC): 18.07
Gross Weight (kg/CTN): 18.07 |
