IDS-T4100-RM



    IDS-T4100-RM

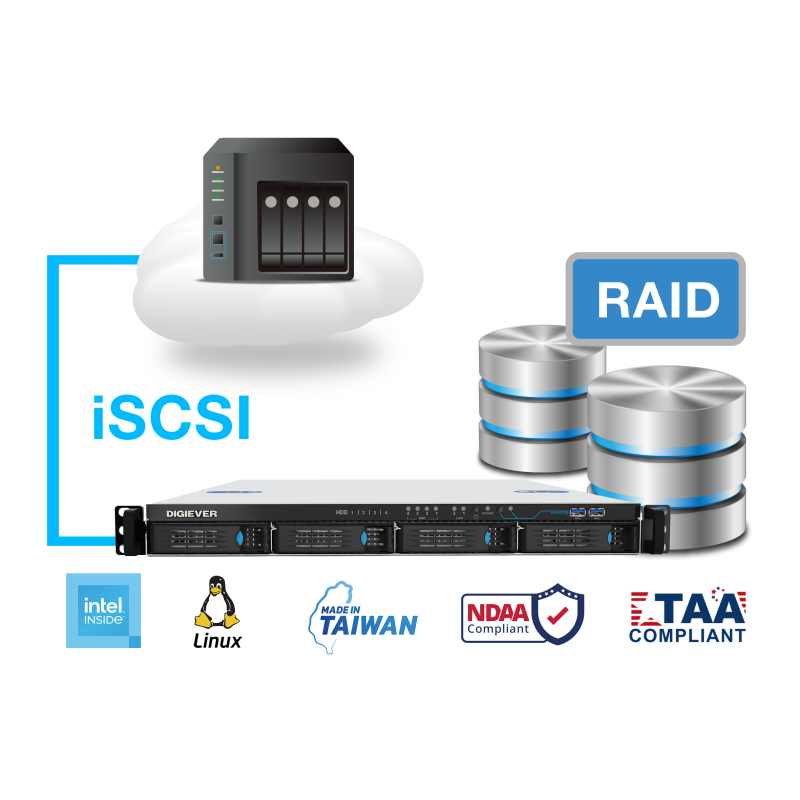

    Linux-embedded iSCSI Storage Expansion Server for DIGIEVER NVR

    IDS-T4100-RM is a 4-bay standalone iSCSI server designed to expand the storage capacity to many DIGIEVER NVRs. Its Mult-RAID design allows you to flexibly define different RAID levels based on the importance of video.


4 BAY
____________________
Hard Disk Drive

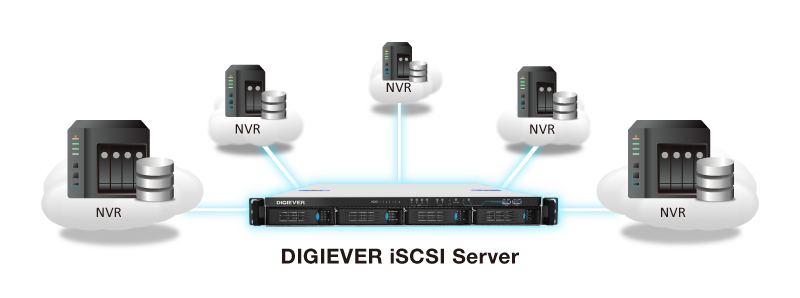

N+M iSCSI Storage Expansion Architecture

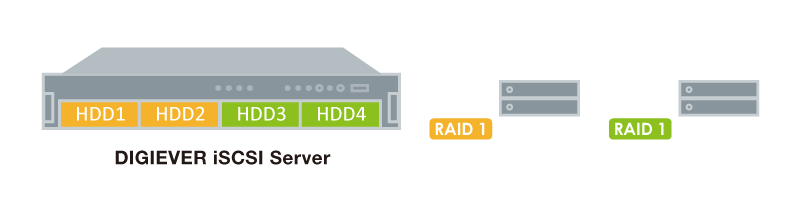

Multi-RAID Storage Management

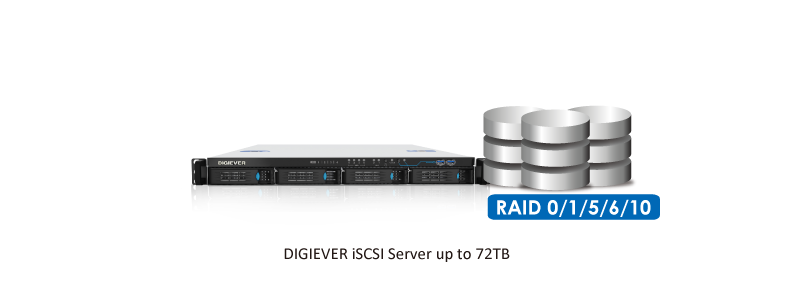

Remarkable Storage Capability




Superior Hardware Design

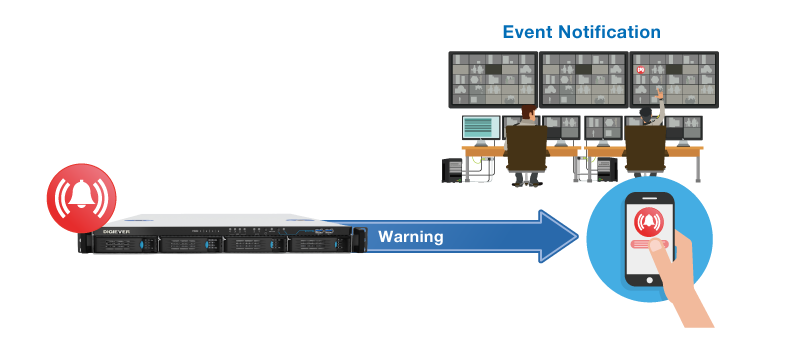

Network Capability and Self-Monitoring



CPU
  • Intel High Performance CPU
    		•
    Memory
  • 4 GB Flash (DOM)
  • 2 GB DDR 4 memory
    		•
    Storage Capacity per HDD
  • Up to 18TB
    		•
    HDD Tray
  • 4
    		•
    Maximum Capacity
  • Up to 72TB
    		•
    LAN Port
  • 2 x 2.5 Gigabit RJ-45 Ethernet port
    		•
    LED Indicators
  • HDD1, HDD2, HDD3, HDD4, LAN1, LAN2, One-touch Backup button
    		•
    USB Connector
  • Front: 2 x USB 3.2 Gen 1x1 for high speed video backup
  • Back: 4 x USB 3.2 Gen1 1x1 for supporting external pen drive, USB mouse/keyboard, USB UPS, etc.
    		•
    Buttons
  • Power, USB backup
    		•
    Video Output Connector
  • HDMI 2.0a x 2 (for local display)
    		•
    Alarm Buzzer
  • System warning
    		•
    Form Factor
  • Rack mount
    		•
    Operation Environment
  • Temperature 0~40˚C
  • Humidity 5~95% R.H.
    		•
    Power Supply
  • Input: 100-240V AC, 50/ 60Hz
  • Output: 250W
    		•
    Power Consumption
  • Operation: 22~50 W
    • (with 4 x 500GB HDD installed in RAID 5 building process)
    Fan
  • 3 x cooling fan (8cm)
    		•
    H/ W Dimensions
  • 45.4(H) x 430(W) x 548 (D) mm
  • 1.78 (H) x 16.9(W) x 21.5 (D) inch
    		•
    Color Box Dimensions
  • 180 (H) x 737 (W) x 587 (D) mm
  • 7.8 (H) x 29 (W) x 23.1 (D) inch
    		•
    Carton Dimensions
  • 215 (H) x 757 (W) x 607 (D) mm
  • 8.4 (H) x 29.8 (W) x 23.9 (D) inch
    		•
    Color Box Shipping Weight
  • Net Weight (kg/PC): 6.26
  • Gross Weight (kg/PC): 8.88
  • Gross Weight (kg/CTN): 10.88
    		•
    Storage Ability
    iSCSI Storage Device
  • Up to 5 devices for DIGIEVER NVR
    		•
    Multi-RAID Numbers
  • Up to 2
    		•
    Disk Management
  • Linear(JBOD), RAID0/ 1/ 5/ 6/ 10
    		•
    S.M.A.R.T HDD Health Monitoring
  • Yes
    		•
    Event & Action Management
    Event
  • Server Events: Internet connection lost, UPS low power warning, abnormal shutdown, built-in digital input
  • Storage Events: RAID Degraded / Failed / Rebuilding
  • Hardware Events: CPU temperature, CPU fan, system fan, HDD error, HDD failed, eSATA connection lost, battery low warning, redundant power supply failure
    		•
    Action
  • E-Mail notification, SMS, buzzer alarm, SNMP trap, stack light, User Defined Action(HTTP out), built-in digital output
    		•
    Network Service
    Two LAN Port Applications
  • Share IP, Separated IP
    		•
    Protocol
  • HTTP, HTTPS, TCP/IP, DHCP, DNS, DDNS
    		•
    *Note: Please contact sales to know more integrated information.
