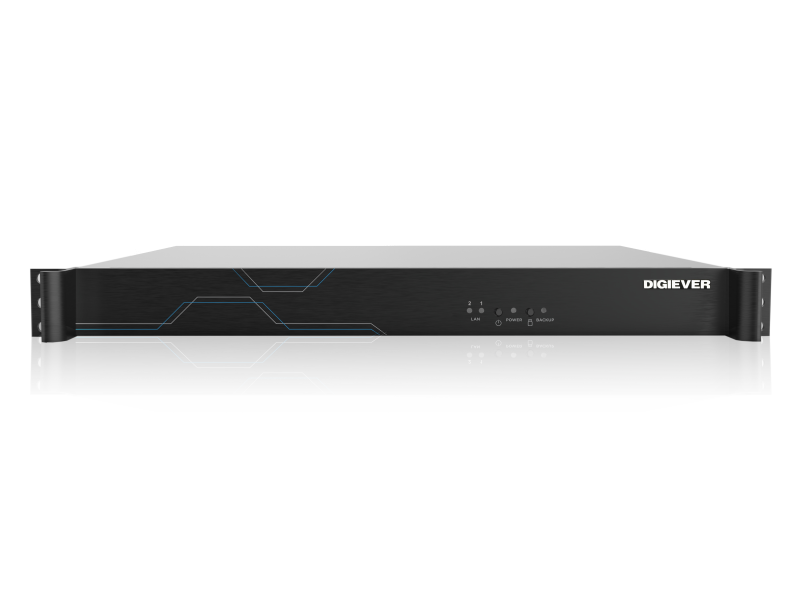

SS-7100-RM



    SS-7100-RM

    Powerful Streaming Forwarding Server for Diverse Devices and Viewer

    DIGIEVER Streaming Server (SS-7100-RM) is a powerful streaming forwarding server that provides up to 1000 streams for large-scale surveillance deployments and hundreds of viewers.

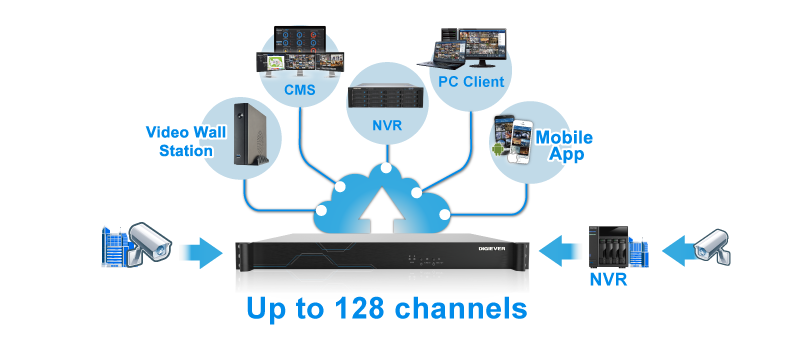

The SS-7100-RM supports up to 128 channels connection with dual-stream functionality to accommodate different access needs. High-resolution streams are optimized for recording, while low-resolution streams are ideal for live monitoring, which save bandwidth usage and offer you a faster access experience. Live video feeds can be viewed directly through the Streaming Server or via software applications on Windows PCs, iOS, and Android devices. The built-in authorization system ensures secure, account-based control of camera access. Additionally, users can enjoy direct playback via the NVR-Client in a local network for quick and convenient video review.


Key Features

  • 128-channel supported
  • Dual-streaming per channel
  • Forwarding performance : 4K with 6M bitrate: 160 streams, Full HD with 4M bitrate: 350 streams, HD with 2M brirate: 600 streams CIF with 512k britrate: 1000 streams
  • Video format: H.264, MJPEG, MxPEG, ZIPStrem


    • CPU
  • Intel
    		•
    Memory
  • 4 GB Flash (DOM)
  • 8 GB DDR 4 memory
    		•
    LAN Port
  • 2 x 2.5 Gigabit RJ-45 Ethernet port
    		•
    LED Indicators
  • Power, LAN and backup
    		•
    USB Connector
  • Back: 4 x USB 3.2 Gen1 1x1 for supporting external pen drive, USB mouse/keyboard, USB UPS, USB speakers .etc.
    		•
    Buttons
  • Power, USB backup (reserved)
    		•
    GPIO
  • 4-out (4-in is reserved)
    		•
    Output Connector
  • 2 x HDMI 2.0a (for local configuration)
    		•
    Alarm Buzzer
  • System Warning
    		•
    Form Factor
  • 1U Rack-mount (with rack-mounted ears mounted)
    		•
    Operation Environment
  • Temperature 0~40˚C
  • Humidity 5~95% R.H.
    		•
    Power Supply
  • Input: 100-240V AC, 50/60 Hz
  • Output: 250W
    		•
    Fan
  • 1 x quiet cooling fan (4cm, 12V DC)
    		•
    H/ W Dimensions
  • 44.4 (H) x 430 (W) x 348 (D) mm
  • 1.7 (H) x 16.9 (W) x 13.7 (D) inch
    		•
    Color Box Dimensions
  • 145 (H) x 540 (W) x 470 (D) mm
  • 5.7 (H) x 21.3 (W) x 18.5 (D) inch
    		•
    Carton Dimensions
  • 170 (H) x 550 (W) x 490 (D) mm
  • 6.6 (H) x 21.6 (W) x 19.2 (D) inch
    		•
    Color Box Shipping Weight
  • Net Weight (kg/PC): 4.08
  • Gross Weight (kg/PC): 6.08
  • Gross Weight (kg/CTN): 6.22
    		•
    Streaming Forwarding
    Supported Channel
  • Up to 128
    		•
    Input Stream
  • Up to 256
    		•
    Output Stream
  • 4K with 6M bitrate : 160 streams
  • Full HD with 4M bitrate : 350 streams
  • HD with 2M bitrate : 600 streams
  • CIF with 512k bitrate : 1000 streams
    		•
    Streaming Resource
  • IP Camera or DIGIEVER NVR
    		•
    Streaming Receiving Device
  • DIGIEVER NVR, DIGIEVER CMS, Video Wall Station, DIGIMobile V2
    		•
    Video Format
  • Compatible with multiple formats based on camera model capabilities6
    		•
    H/W Decode Max Resolution per Channel
  • Up to 8MP (4K UHD)
    		•
    Liveview Monitoring (Windows)
    Surveillance Software Application
  • Yes, able to access via entering the IP address on web browser and the shortcut on desktop
    		•
    Camera Resolution
  • Up to 8MP (4K UHD) per channel
    		•
    Display Mode
  • 1/ 3/ 4/ 5/ 8/ 9/ 10/ 12/ 16/ 20/ 25/ 30/ 36/ 42/ 49/ 56/ 64 & 5+1/ 12+1-channel & sequential and full screen display modes
    		•
    Focus Sequential Display
  • Supports 5+1 and 12+1-channel display made, able to define sequential intervals for focus screen and secondary screen.
    		•
    Auto-mute Mode for Idle Cursor
  • Yes
    		•
    On-screen Display
  • Yes, able to define information, size, position and color
    		•
    E-Map
  • Yes, Multi-layer dynamic E-Map, pop-out event window, double-click to pop-out large video window, customized camera icons on map
    		•
    Control
  • PTZ control, PTZ auto cruising, digital zoom, optical zoom, focus control, full screen display, video sanpshot and preset position
    		•
    Region of Interest (ROI)
  • Monitor 5 or 7 regional images from a high-resolution camera
    		•
    Moving Speed for ONVIF PTZ camera
  • Yes. (Very fast, Fast, Normal, Slow, Very slow)
    		•
    2-Way Audio Support
  • Yes
    		•
    Camera Dewarp
  • Yes
    		•
    Multi Web Browsers Support
  • Edge, Chrome, Firefox, Opera, Safari
    		•
    NVR-Client Shortcut for Login
  • Yes, support save login information and auto login on startup
    		•
    Remote Playback (cameras are added from NVR)
    Supported Channel
  • 16-channel simultaneously playback
    		•
    Display Mode
  • 1/ 4/ 5/ 9/ 16 channel & full screen
    		•
    Search Mode
  • Date, time, channel and recording type
    		•
    Playback Control
  • Rewind, Slow motion, Fast forward, Frame by Frame Playback, Fisheye camera dewarping, OSD Setting, Snapshot, ROI, Customized watermark, Time-divided search, Data search
    		•
    Video Export
  • Yes, including to add test watermark, to define video format, to combine 5-minute videos into a AVI file.
    		•
    Instant Export
  • Export multi-channel videos during video playback
    		•
    Smart Search
  • Motion detection, Foreign object detection, Missing object detection, Camera tampering detection, Lose focus detection
    		•
    Data Search
  • Camera Event, NVR Event, External I/O Device, License Plate Recognition, and People Counting
    		•
    Video Player
  • Installation-free NVRPlayer with multi-channel playback
    		•
    Advanced Event & Action Management
    Event
  • Streaming Server Event:
    • System Event: Network Disconnected, UPS Warning, Abnormal Shutdown
    • Hardware Event: CPU Temperature Warning, CPU Fan Warning, System Fan Warning, Battery Low Warning
  • Camera Network Disconnected
  • NVR Events:
    • External Event: Digital Input, HTTP-in, External I/O device
    • Camera Event: Motion Detection, Digital Input, Intrusion Detection, Camera Tampering Detection, Counting Threshold Alarm, Temperature Detection, Loitering Detection, Human Detection, Foreign Object Detection, Missing Object Detection, Advanced Motion Detection
    		•
    Action
  • Event log blinking, E-mail notification, SMS, Buzzer alarm, Event log history (liveview), Built-in digital output
    		•
    Security Management
    Max. Number of Account
  • Up to 1024
    		•
    User Privilege Management
  • User can be assigned for different levels of privilege
    		•
    Log System
  • Hardware log, System log, event log, current user log and historical user log
    		•
    IP Access Control
  • Specify IP address or network segment for the white and black list
    		•
    Auto Logout
  • Auto logout idle time limit from configuration page
    		•
    Two LAN Port Applications
  • Yes, including Shared IP, Separated IP and Link aggregation
    		•
    Operating System
  • Linux-embedded system
    		•
    Network Service
    Protocol Support
  • HTTP/ HTTPS, TCP/ IP, DHCP, Static IP, DNS, DDNS, UPnP and NTP IPv6 (for NVR)
    		•
    Suggested PC Requirements for Remote Monitoring
    Operating System
  • Microsoft® Windows® 10/11
    		•
    CPU
  • Intel® i7 CPU or above
    		•
    Memory
  • 16G or above
    		•
    Browser
  • Microsoft® Edge 44.18362,387.0 or above, Chrome 56.0.29 or above, Firefox 51.0.1 or above, Opera 43.0.2 or above, Safari 16.4.1 or above
    		•
    Suggested Switch Requirement
    Switch
  • Gigabit switch is highly recommended
    		•
    *Note: Please contact sales to know more integrated information.
